Product Introduction
Product Summary

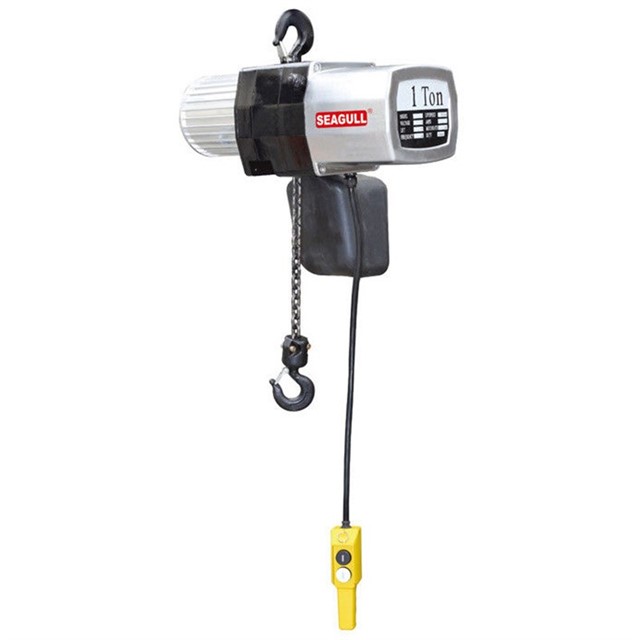

SEAGULL® Electric Power Chain Hoist lifts and lowers loads up to 9.8 feet (3m) — all with the push of a button. No need to climb a ladder and crank a lever with this hoist; you can remain on the ground to control operations. Enclosed steel plate construction holds a heavy-duty ventilated motor with thermal overload protection. Gear trains are permanently lubricated for long life.
Product Description
With suspension hook. push, geared or electric trolley.
Standard lift height 3 m, control cable 3m
Operating voltage 220-460V, 50/60Hz, 1-3 phase
Low voltage control 24V is standard.
Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
Top and bottom hooks are fitted with safety latches as standard.
High efficient energy-saving motor, asbestos free brake system.
Solid chain bucket.
Super strong surface hardened chain.
Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
The unique friction clutch overload protection, which protects the unit from overloading.
High quality electric components with safety protection.*One year warranty.
Technical Parameters
| Model |
Work Class |
Capacity (Lbs) |
Lifting Height (m) |
Lifting Speed (m/min) |
1-PH/110V-220V/50HZ-60HZ | ||
| Power(kw) | Ins Class | Protection | |||||
| SCH302G | M6(H4) | 500 | 3 | 4.9 | 0.3 | F | IP54 |
| SCH305G | M6(H4) | 1000 | 3 | 4.9 | 0.6 | F | IP54 |
| SCH310G | M6(H4) | 2000 | 3 | 4.9 | 1.2 | F | IP54 |
| SCH320G | M6(H4) | 4000 | 3 | 2.45 | 1.2 | F | IP54 |
| Model | Load Chain |
Test Load (KN) |
Net Weight (kg) |
|
| Dia(mm) | Number of falls | |||
| SCH302G | 7.1*21 | 1 | 27.5 | 43 |
| SCH305G | 7.1*21 | 1 | 55 | 47 |
| SCH310G | 7.1*21 | 1 | 110 | 50 |
| SCH320G | 7.1*21 | 2 | 220 | 55 |
Our Team
Questions
-
1 Why choose us?
Seagull has more than 30 years experience on this lifting equipments field. All our sales work in seagull more than 10 years and know our products very well. We will feedback your email within 8 hours. We control the defect of lifting equipments under 0.01% over 15 years . This means, we has the ability to preview problems. Therefore, We will avoid any risk happen if you make a wise choose on seagull.
-
2 How about sample policy?
We accept sample order. Please inform your detailed sample requirement, such as the model, the capacity, the lifting height and so on. If we have the sample in stock , the ship will be quicker. If we don’t have the stock, we will make the sample as soon as possible. Please be patient and wait for a period of time. The sample fee and express fee usually paid by client, for special policy need to apply by client and approved by our leaders.
-
3 How to make an order?
Please send us your purchase order by Email or Fax,
1) Product information: Quantity, Specification (capacity, lifting height, voltage, size, material, color and packing requirement),
2) Delivery time required.
3) Customer information: Company name, Address, Phone number, Destination seaport/airport.
4) Ship by FOB or CIF or CNF.
-
4 Which payment way is available?
30% T/T at advance, 70% T/T by copy of B/L.
100% L/C at sight(long cooperation ).
-
5 What import customers you are cooperation?
CM,MSC USA ,JET Canada,TRACTEL France, BEAVER Austrialia,HFS Austria,HHH Japan,etc.
Our Strengh
-
-
PRODUCTION LINE
We always insisted that “Quality ,development,credibility,sincerity,cooperation and the principles of seagull".
We provide the better and more inexpensive product. Welcome the customers from all over the world!
-
-
OEM/ODM
Our company has our own unique team of designers, for different types from OEM $ ODM customer's needs! With more than 20 elites in RD dept, we provide OEM/ODM project for many countries, such as German, Japan, Canada, Mexico, Hongkong, etc.
-
-
R&D
Our company has set up the R&D machinery department. In 2000, the company and Japan HHH joint venture, with the japanese technology, produced the first hand chain hoist.
-
-
QC PROFILE
We have a special Q&C department, which will conduct quality test before shipment.
