Product Introduction
Product Summary

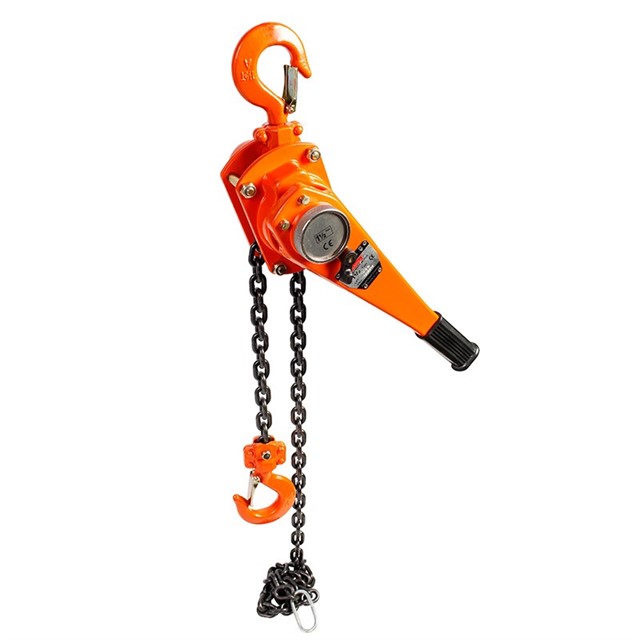

The SEAGULL manual lever chain hoist features a rugged steel frame, load chain hardened for strength and durability and compact design that's perfect for tight spaces. Enclosed gear housing provides protection that makes it suitable for outdoor use. Guide slots guard against jamming and slipping.
Product Description
Capacity from 0.75T to 6T.
Bearings inside load chain sprocket increase mechanical efficiency.

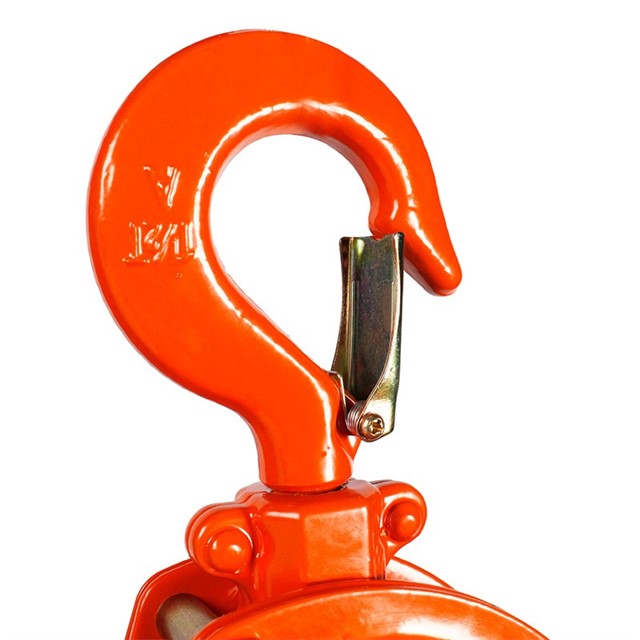

Drop forged hooks and hook holders, heat treated to ensure the safety and durability.
Gear assembly provide smooth operation by little hand efforts.
Chain guides provide smooth chain operation .
T80 grade high tensile lifting chain make more effective.
lightweight steel construction with durable powder coat finish.
CE CERTIFIED.
One year guarantee.
Technical Parameters
| Model | HSH-7.5C | HSH-10C | HSH-15C | HSH-30C | HSH-60C | |
| Rated load (T) | 0.75 | 1 | 1.5 | 3 | 6 | |
| Test load (T) | 1.125 | 1.5 | 2.25 | 4.5 | 9 | |
| Standard lift (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Min. distance between two hooks(mm) | 295 | 310 | 335 | 405 | 550 | |
| Efforts required at capacity (N) | 140 | 186 | 234 | 363 | 370 | |
| No. of load chains | 1 | 1 | 1 | 1 | 2 | |
| Diameter of load chain (mm) | 6 | 6 | 7.1 | 10 | 10 | |
| Dimensions (mm) | A | 148 | 148 | 163 | 191 | 191 |
| B | 128 | 128 | 148 | 181 | 244 | |
| C | 295 | 310 | 335 | 405 | 550 | |
| D | 256 | 256 | 368 | 368 | 368 | |
| E | 26 | 26 | 30 | 34 | 47 | |
| Net weight (kg) | 7.3 | 7.8 | 10.4 | 17.2 | 26 | |
Our Team
Questions
-
1 Why choose us?
Seagull has more than 30 years experience on this lifting equipments field. All our sales work in seagull more than 10 years and know our products very well. We will feedback your email within 8 hours. We control the defect of lifting equipments under 0.01% over 15 years . This means, we has the ability to preview problems. Therefore, We will avoid any risk happen if you make a wise choose on seagull.
-
2 How about sample policy?
We accept sample order. Please inform your detailed sample requirement, such as the model, the capacity, the lifting height and so on. If we have the sample in stock , the ship will be quicker. If we don’t have the stock, we will make the sample as soon as possible. Please be patient and wait for a period of time. The sample fee and express fee usually paid by client, for special policy need to apply by client and approved by our leaders.
-
3 How to make an order?
Please send us your purchase order by Email or Fax,
1) Product information: Quantity, Specification (capacity, lifting height, voltage, size, material, color and packing requirement),
2) Delivery time required.
3) Customer information: Company name, Address, Phone number, Destination seaport/airport.
4) Ship by FOB or CIF or CNF.
-
4 Which payment way is available?
30% T/T at advance, 70% T/T by copy of B/L.
100% L/C at sight(long cooperation ).
-
5 What import customers you are cooperation?
CM,MSC USA ,JET Canada,TRACTEL France, BEAVER Austrialia,HFS Austria,HHH Japan,etc.
Our Strengh
-
-
PRODUCTION LINE
We always insisted that “Quality ,development,credibility,sincerity,cooperation and the principles of seagull".
We provide the better and more inexpensive product. Welcome the customers from all over the world!
-
-
OEM/ODM
Our company has our own unique team of designers, for different types from OEM $ ODM customer's needs! With more than 20 elites in RD dept, we provide OEM/ODM project for many countries, such as German, Japan, Canada, Mexico, Hongkong, etc.
-
-
R&D
Our company has set up the R&D machinery department. In 2000, the company and Japan HHH joint venture, with the japanese technology, produced the first hand chain hoist.
-
-
QC PROFILE
We have a special Q&C department, which will conduct quality test before shipment.
