Product Introduction
Features
●It applies C type steel structure design. Lifting more stable and safe.
●All manual stacker have been equipped with wheel frame protection device.
●The handle have been surround with rubber. With lengthening design for comfortable use.
●Single frame have two ways to unload by manual or pedal. More flexible to use.
●Fork with adjustable nut, it can easy to adjust the fork height.
●Wheel frame equipped with grease ftting design to routine maintenance the bearing.
Technical Parameters

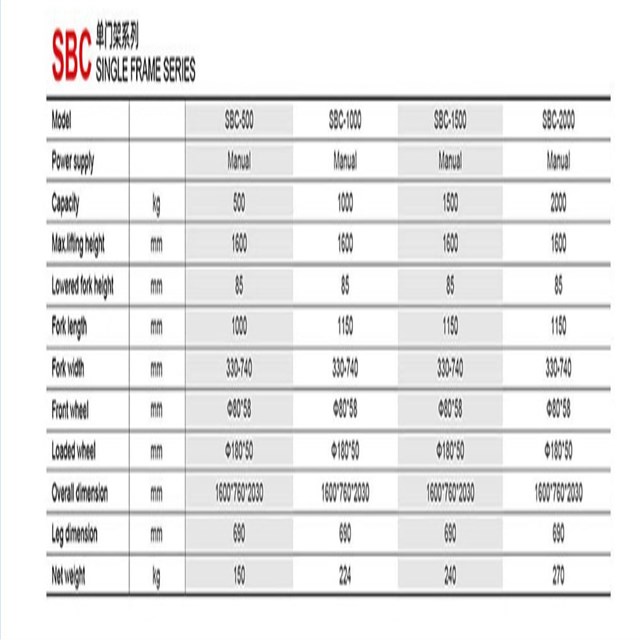

SBC SINGLE FRAME SERIES
|
Model |
|
SBC-500 |
SBC-1000 |
SBC-1500 |
SBC-2000 |
|
Power supply |
|
Manual |
Manual |
Manual |
Manual |
|
Capacity |
kg |
500 |
1000 |
1500 |
2000 |
|
Max.lifting height |
mm |
1600 |
1600 |
1600 |
1600 |
|
Lowered fork height |
mm |
85 |
85 |
85 |
85 |
|
Fork length |
mm |
1000 |
1150 |
1150 |
1150 |
|
Fork width |
mm |
330-740 |
330-740 |
330-740 |
330-740 |
|
Front wheel |
mm |
φ80*58 |
φ80*58 |
φ80*58 |
φ80*58 |
|
Loaded wheel |
mm |
φ180*50 |
φ180*50 |
φ180*50 |
φ180*50 |
|
Overall dimension |
mm |
1600*760*2030 |
1600*760*2030 |
1600*760*2030 |
1600*760*2030 |
|
Leg dimension |
mm |
690 |
690 |
690 |
690 |
|
Net weight |
kg |
150 |
224 |
240 |
270 |

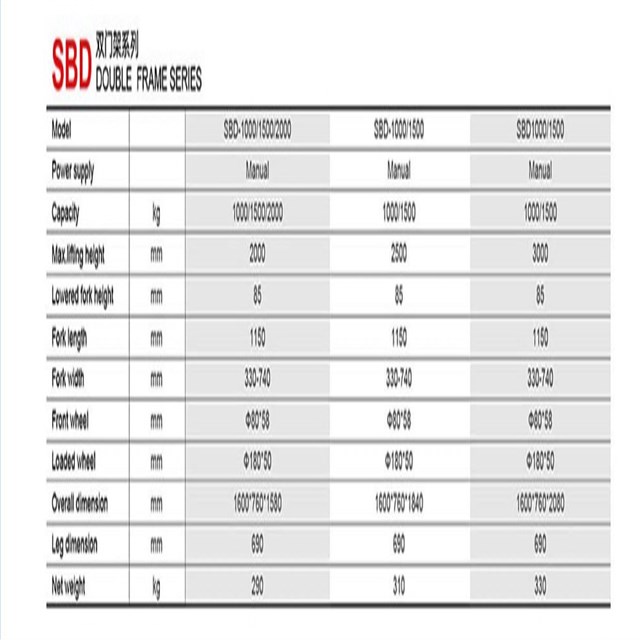

SBD DOUBLE FRAME SERIES
|
Model |
|
SBD-1000/1500/2000 |
SBD-1000/1500 |
SBD1000/1500 |
|
Power supply |
|
Manual |
Manual |
Manual |
|
Capacity |
kg |
1000/1500/2000 |
1000/1500 |
1000/1500 |
|
Max.lifting height |
mm |
2000 |
2500 |
3000 |
|
Lowered fork height |
mm |
85 |
85 |
85 |
|
Fork length |
mm |
1150 |
1150 |
1150 |
|
Fork width |
mm |
330-740 |
330-740 |
330-740 |
|
Front wheel |
mm |
φ80*58 |
φ80*58 |
φ80*58 |
|
Loaded wheel |
mm |
φ180*50 |
φ180*50 |
φ180*50 |
|
Overall dimension |
mm |
1600*760*1580 |
1600*760*1840 |
1600*760*2080 |
|
Leg dimension |
mm |
690 |
690 |
690 |
|
Net weight |
kg |
290 |
310 |
330 |
Our Team
Questions
-
1 Why choose us?
Seagull has more than 30 years experience on this lifting equipments field. All our sales work in seagull more than 10 years and know our products very well. We will feedback your email within 8 hours. We control the defect of lifting equipments under 0.01% over 15 years . This means, we has the ability to preview problems. Therefore, We will avoid any risk happen if you make a wise choose on seagull.
-
2 How about sample policy?
We accept sample order. Please inform your detailed sample requirement, such as the model, the capacity, the lifting height and so on. If we have the sample in stock , the ship will be quicker. If we don’t have the stock, we will make the sample as soon as possible. Please be patient and wait for a period of time. The sample fee and express fee usually paid by client, for special policy need to apply by client and approved by our leaders.
-
3 How to make an order?
Please send us your purchase order by Email or Fax,
1) Product information: Quantity, Specification (capacity, lifting height, voltage, size, material, color and packing requirement),
2) Delivery time required.
3) Customer information: Company name, Address, Phone number, Destination seaport/airport.
4) Ship by FOB or CIF or CNF.
-
4 Which payment way is available?
30% T/T at advance, 70% T/T by copy of B/L.
100% L/C at sight(long cooperation ).
-
5 What import customers you are cooperation?
CM,MSC USA ,JET Canada,TRACTEL France, BEAVER Austrialia,HFS Austria,HHH Japan,etc.
Our Strengh
-
-
PRODUCTION LINE
We always insisted that “Quality ,development,credibility,sincerity,cooperation and the principles of seagull".
We provide the better and more inexpensive product. Welcome the customers from all over the world!
-
-
OEM/ODM
Our company has our own unique team of designers, for different types from OEM $ ODM customer's needs! With more than 20 elites in RD dept, we provide OEM/ODM project for many countries, such as German, Japan, Canada, Mexico, Hongkong, etc.
-
-
R&D
Our company has set up the R&D machinery department. In 2000, the company and Japan HHH joint venture, with the japanese technology, produced the first hand chain hoist.
-
-
QC PROFILE
We have a special Q&C department, which will conduct quality test before shipment.
