Product Introduction
Product Description

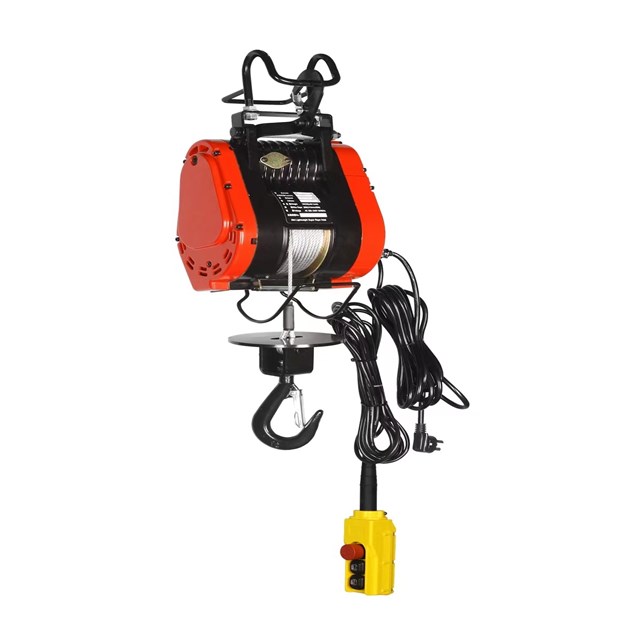

300kg electric chain hois wire rope hoist Standard lift 29 meter
Advantages
small size, light weight, easy to carry.
Hanging end is double insurance, you can ensure the stability of the installation.
Shell is made of aluminum, heat dissipation is better
Enhance the speed, the general wire rope hoist lifting speed is 8m / min, this electric hoist to enhance the speed up to 23m / min
Over-roll prevention device: When the cable is wound up, the power will be cut off automatically and immediately stop automatically to prevent the collision
Reversal prevention device: With the function of preventing reverse, it automatically stops when the reversal occurs
Double safety brake device: The motor as a power, motor instantaneous deceleration when power is off, at the same time mechanical ratchet brake fully automatic, so there will be no brake failure, greatly enhance the use of safety.

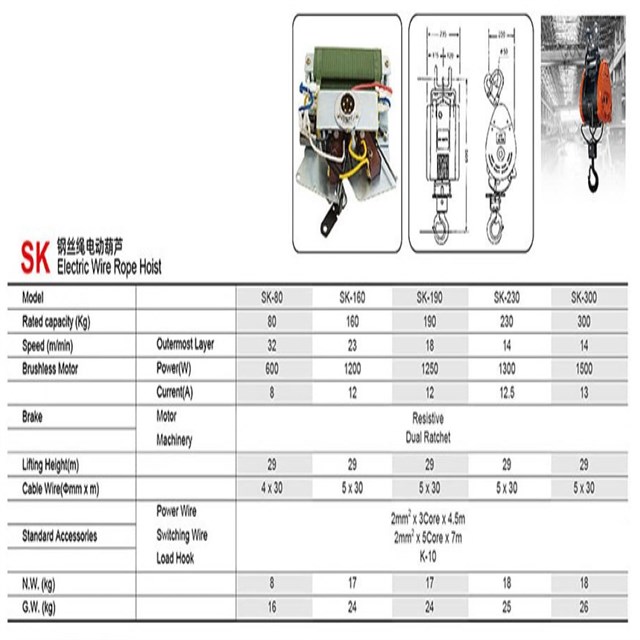

TECHNICAL PARAMETERS
Model |
SK-80 |
SK-160 |
SK-190 |
SK-230 |
SK-300 |
|
Rated Load(kg) |
80 |
160 |
190 |
230 |
300 |
|
Speed(m/min) |
The outermost |
32 |
23 |
18 |
14 |
14 |
Brush motor |
Horsepower (W) |
600 |
1200 |
1250 |
1300 |
1500 |
Curren(A) |
8 |
12 |
12 |
12.5 |
13 |
|
Brakes |
motor |
Resistive |
||||
Machinery |
Double ratchet |
|||||
Standard lift |
29 |
29 |
29 |
29 |
29 |
|
Wire rope φmm*m |
4*30 |
5*30 |
5*30 |
5*30 |
5*30 |
|

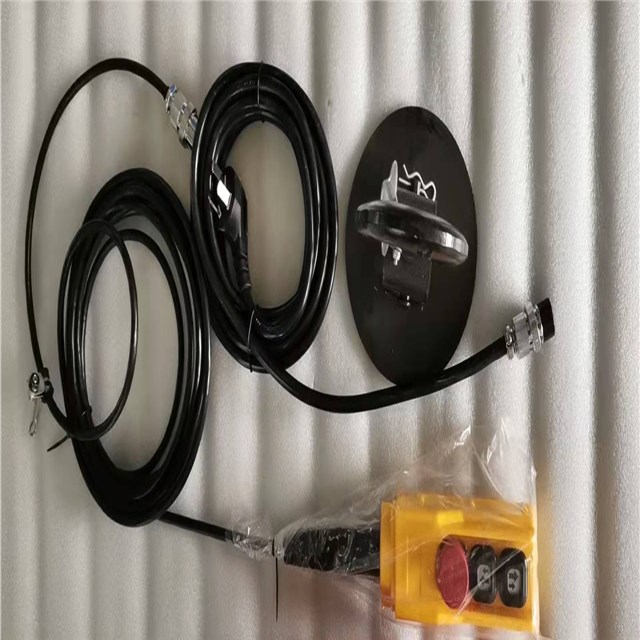

Standard accessories |
power cable |
2mm² * 3 cores * 4.5m |
||||

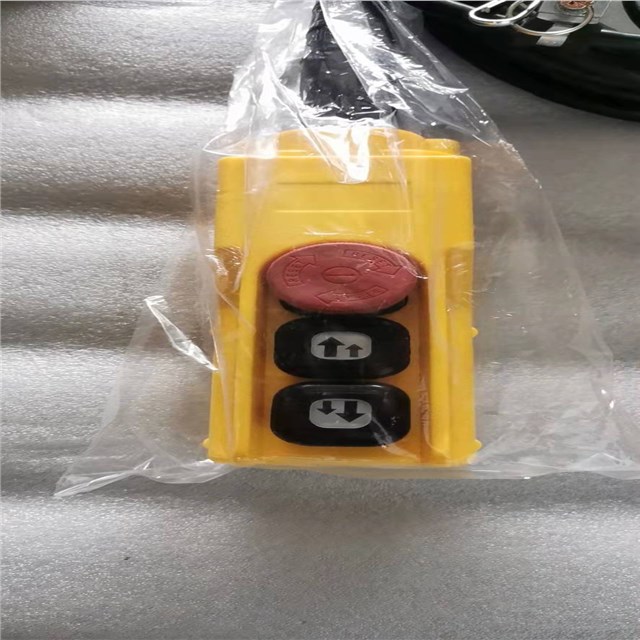

Switch line |
2mm² * 5 cores * 7m |
|||||
Hammer weight hook |
K-10 |
|||||
Net weight kg |
8 |
17 |
17 |
18 |
18 |
|
Gross weightkg |
16 |
24 |
24 |
25 |
26 |
Application
This electric hoist can be used in factories ,mines,agriture,electric power,construction buildingsite,dock,and warehouse for installing the machines,lifting the cargoes,loading and unloading the trucks.
Our Team
Questions
-
1 Why choose us?
Seagull has more than 30 years experience on this lifting equipments field. All our sales work in seagull more than 10 years and know our products very well. We will feedback your email within 8 hours. We control the defect of lifting equipments under 0.01% over 15 years . This means, we has the ability to preview problems. Therefore, We will avoid any risk happen if you make a wise choose on seagull.
-
2 How about sample policy?
We accept sample order. Please inform your detailed sample requirement, such as the model, the capacity, the lifting height and so on. If we have the sample in stock , the ship will be quicker. If we don’t have the stock, we will make the sample as soon as possible. Please be patient and wait for a period of time. The sample fee and express fee usually paid by client, for special policy need to apply by client and approved by our leaders.
-
3 How to make an order?
Please send us your purchase order by Email or Fax,
1) Product information: Quantity, Specification (capacity, lifting height, voltage, size, material, color and packing requirement),
2) Delivery time required.
3) Customer information: Company name, Address, Phone number, Destination seaport/airport.
4) Ship by FOB or CIF or CNF.
-
4 Which payment way is available?
30% T/T at advance, 70% T/T by copy of B/L.
100% L/C at sight(long cooperation ).
-
5 What import customers you are cooperation?
CM,MSC USA ,JET Canada,TRACTEL France, BEAVER Austrialia,HFS Austria,HHH Japan,etc.
Our Strengh
-
-
PRODUCTION LINE
We always insisted that “Quality ,development,credibility,sincerity,cooperation and the principles of seagull".
We provide the better and more inexpensive product. Welcome the customers from all over the world!
-
-
OEM/ODM
Our company has our own unique team of designers, for different types from OEM $ ODM customer's needs! With more than 20 elites in RD dept, we provide OEM/ODM project for many countries, such as German, Japan, Canada, Mexico, Hongkong, etc.
-
-
R&D
Our company has set up the R&D machinery department. In 2000, the company and Japan HHH joint venture, with the japanese technology, produced the first hand chain hoist.
-
-
QC PROFILE
We have a special Q&C department, which will conduct quality test before shipment.
